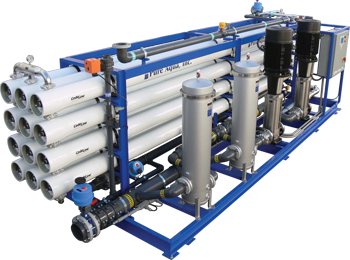

Industrial Brackish Water

225,000 to 600,000 GPD / 757 to 3,407 M3/D

Brackish Water RO Reverse osmosis, also known as hyper filtration, is used to purify water and remove salts and other impurities. It is also capable of rejecting bacteria, sugars, proteins, particles, dyes, and other constituents that have a molecular weight of greater than 150-250 dalton.

Standard Features

  • 8" TFC spiral wound membranes
  • FRP membrane housing
  • Epoxy painted steel frame
  • Stainless steel multi-stage pump with TEFC motor
  • 5 micron cartridge prefilter
  • Power supply: 460V/3Ph/60Hz
  • PLC based control panel
  • Programmable time delay and set points
  • Status lamps
  • 115V/60Hz control voltage
  • Motor starter
  • NEMA 12 enclosure with disconnect and interlocking rotary handle
  • Low pressure switch
  • High pressure switch
  • Liquid filled pressure gauges, panel mount for pump suction, membrane feed, and final concentrate
  • Permeate conductivity monitor
  • Permeate & concentrate flow meters

Available Options

  • Feed water conductivity monitor
  • Membrane cleaning skid
  • Automatic hourly flush
  • Feed / Permeate blending
  • Export crating
  • Custom designed units
  • 380-415V/3Ph/50Hz power supply
  • 220V/3Ph/60Hz power supply
  • Product tank level controller switch
  • Feed pH controller with sensor
  • Feed ORP controller with sensor
  • Hour meter
  • Water meter
  • Chemical dosing units
  • Media filters
  • Ozonation system
  • UV sterilizers
  • Water softeners

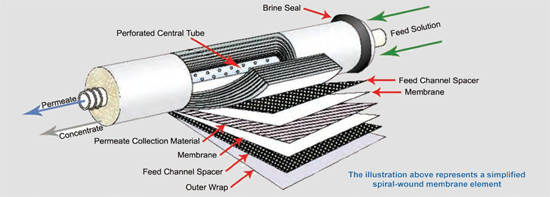

How the Membrane System Works

The spiral membrane is constructed of one or more membrane envelopes wound around a perforated central tube. The permeate passes through the membrane into the envelope and spirals inward to the central tube for collection.

Operation Specifications

  • Feed water temperature = 95º F Max.
  • Hydrogen Sulfide must be removed
  • Feed water pressure = 20 to 80 psi
  • Turbidity should be removed
  • Operating pressure: 175 to 250 psi
  • Iron tolerance: 0.05 ppm Max.
  • Feed water TDS: 0-1,000 ppm, or higher as an option
  • Hardness over 1 GPG requires antiscalant dosing
  • pH range: 3-11
  • Units can handle higher TDS by lowering recovery
  • Silica Tolerance: 25 ppm max. @ 60% recover


Industrial Brackish Water Reverse Osmosis Systems RO-500
Model # Permeate Membranes 1000ppm Dimensions  Approximate Weight
Motor HP at 1000ppm
GPD M3/D Array Qty 60 Hz 50 Hz L"xW"xH" Lbs
TW-200K-4780 200,000 757 4:00 28 40 30 350x72x80 4,500
TW-225K-5680 225,000 852 3:02 30 50 30 350x72x80 4,500
TW-270K-6680 270,000 1,022 4:02 36 60 40 350x72x80 4,900
TW-320K-7680 320,000 1,211 5:02 42 60 40 350x72x90 5,200
TW-360K-8680 360,000 1,363 5:03 48 100 50 350x72x90 5,750
TW-410K-9680 410,000 1,552 6:03 54 100 50 350x72x90 6,250
TW-450K-10680 450,000 1,703 7:03 60 100 60 350x72x90 7,500
TW-500K-11680 500,000 1,893 8:03 66 100 60 300x72x80 8,500
TW-550K-11780 550,000 2,082 11:00 77 100 60 350x72x90 8,750
TW-600K-13780 600,000 2,271 13:00 91 100 75 350x84x90 9,250
TW-700K-14780 700,000 2,650 14:00 98 2x100 100 350x84x90 9,650
TW-800K-16780 800,000 3,028 16:00 112 2x100 2X50 350x84x90 10,200
TW-900K-18780 900,000 3,407 18:00 126 2x100 2X50 350x84x90 10,650

All specifications are subject to change without notice

Special Note: If the feed water TDS exceeds 1,000 ppm, the system model number changes o BW-XXXK-XXXX, and a suffix is added to the end of the model number. "-3" is added if the TDS is 3,000 ppm or less, and "-5" is added if the TDS is 5,000 ppm or less. EXAMPLE= You need a 320,000 GPD system and your feed water has a TDS of 5,000 ppm, you would order Model Number "BW-320K-7680-5".

We also supply Custom Engineered Solutions the following:

  • Multi-Media Pretreatment
  • Carbon Pretreatment
  • Water Conditioning
  • Chemical Metering Pumps
  • Ultra-Violet Sterilizers
  • Ozone Sterilization
